| Features |
|---|
| – Heater with a flange for welding into the tank wall |
| – Replaceable heating insert without the need to drain the fluid from the tank |
| – Modular housing |
| – Durable construction |
| – Easy installation |
| – Surface load capacity: 3.0 cm² for water and similar fluids |
| Technical Data | |
|---|---|
| Power | from 1400W to 8100W |
| Voltage | 230V, 400V, 3x400V |

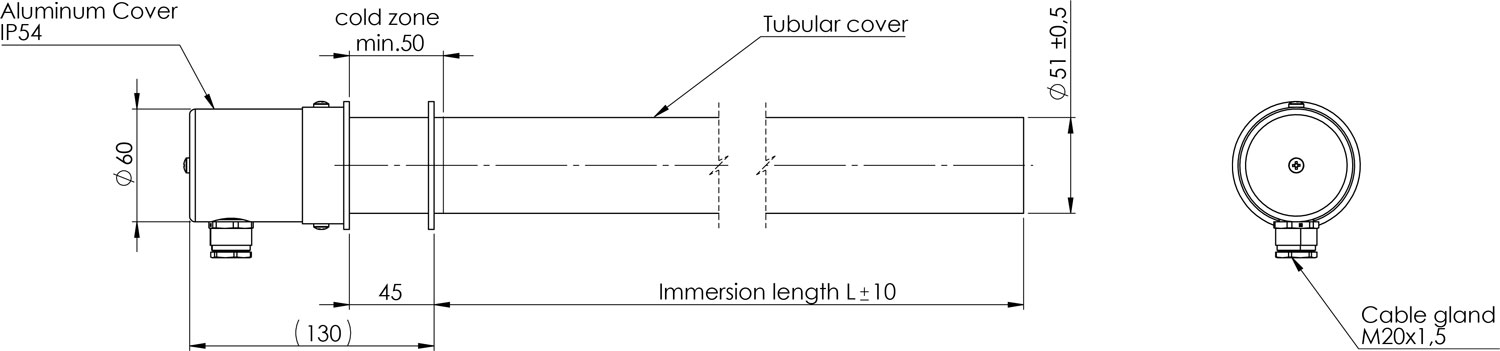

| Length | from 400mm to 2000mm |
| Diameter | 51mm |
| Material of housing and threaded heads | stainless steel |
| Flange diameter | 68mm |
| Thread connection | M5 |
| Connection protection | metal cover (angular) |
| Protection rating | IP54 |
| Cold zone | min. 50mm |
| Operating conditions | Horizontal |
* Other parameters available on request
| Applications |
|---|
| – Heating water |
| – Heating technological baths |
