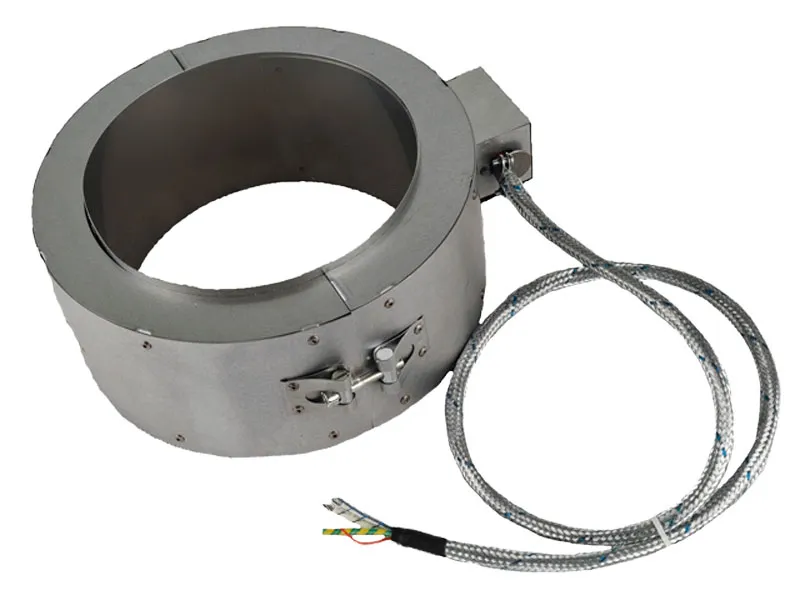

Ceramic band heaters
Inner diameter: From 65 to 900 mm
Width: From 35 to 500 mm
Surface load: max. 8W/cm2
Power supply voltage: 230 V
Temperatura pracy: 420 °C
Heating spiral: NiCr 80/20
Wall thickness of the heating band: 12,0 mm +/- 1,0mm
Enclosure material: Stainless steel AISI 430
Heating band insulation: Fiberglass
Spiral insulation: Steatite blocks



Features
– Excellent heat transfer
– Long lifespan with proper usage
– Easy installation
– Even heat distribution
– High mechanical resistance
– Stable operation
– High power output (up to 7W/cm²)
– Energy savings due to external insulation around the heating element, reducing approximately ~20% compared to standard micanite bands
Applications
– Injection molding machines, extruders, and extrusion machines
– Blow molding machines
– Machines for manufacturing rubber products
– Pipe and industrial duct heaters
– Other thermoforming equipment
– Other applications for heating cylindrical shapes

Connection Layout, Hole Distribution in Degrees:

Files for download

Download the product datasheet PDF to learn more.

Types of Electrical Connections
Rodzaje podłączeń elektrycznych
Types of Mountings
Types of Mountings
Ceramic band heaters
Ceramic heater construction:
  • 1
    Outer sheet metal
  • 2
    Ceramic components
  • 3
    Resistance wire winding
  • 4
    Glass fibre insulation

When ordering, please specify:

  • diameter [mm]
  • width [mm]
  • power [W]
  • voltage [V]
  • type of current lead (MB, terminal block, other)
  • position of current leads in degrees
  • cable exit direction: axial/radial
  • cable length [mm]
  • hole or cut-out (if applicable)
  • position of hole in degrees
  • position of the hole center in mm
  • hole diameter in mm

It is also possible to manufacture heaters according to drawings or samples provided by the client.

Order example:

Ceramic band heater 3000W 230V Ø150x230mm MB.01/180°
Hole: D20/90°, 210mm
Quantity: 3 pcs
