| Features |
|---|
| – Heater screwed in with a hook wrench |
| – Replaceable heating element without the need to drain the liquid from the tank |
| – Modular casing |
| – Durable construction |
| – Easy installation |
| – Surface load of 1.5 W/cm² for oil |
| – Surface load of 3.0 W/cm² for water and similar fluids |
| Technical Specifications | |
|---|---|
| Power | From 350W to 9500W |
| Voltage | 230V, 400V, 3x400V |
| Length | From 300mm to 2000mm |
| Diameter | 35mm/40mm/51mm/63,5mm |
| Material of casing, threaded heads | Stainless steel |
| Threaded connection | M42x2, G1 1/2”, G2”, G2 1/2” |
| Connection protection | Plastic cover (axial or angular) |
| Protection rating | IP54 |
| Cold Zone | min. 50mm |
| Operating conditions | Horizontal |
* Other parameters available on request
| Applications |
|---|
| – Heating water |
| – Heating oil |
| – Heating technological baths |
Thread M42x2

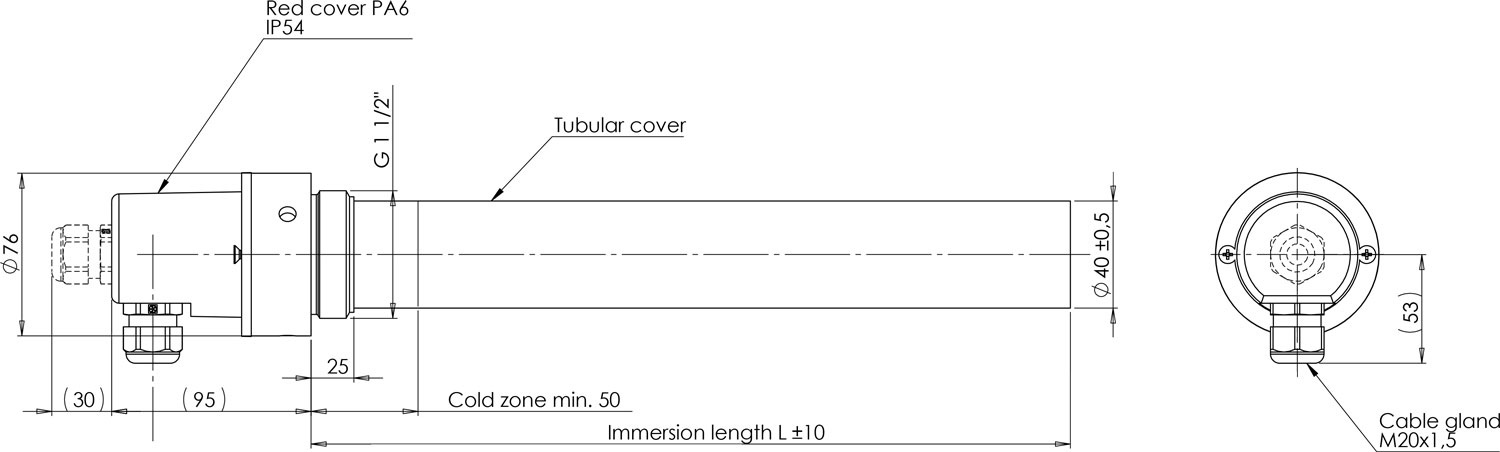

Thread G1 1/2”

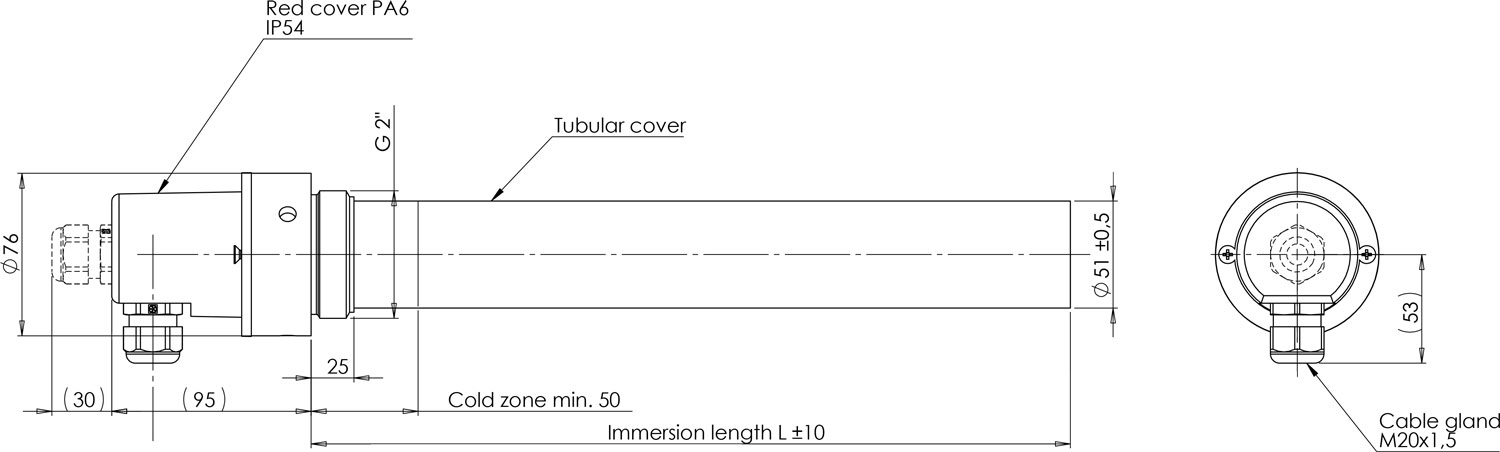

Thread G2”
How to order?
When placing an order, please specify:
