| Features |
|---|
| – Screw-in heater compatible with a hydraulic wrench |
| – Replaceable heating cartridge without draining the tank |
| – Modular housing |
| – Durable construction |
| – Easy installation |
| – Maximum surface load: 1.5 W/cm² |
| Technical Data | |
|---|---|
| Power | from 250W to 4400W |
| Voltage | 230V, 400V, 3x400V |
| Length | from 300mm to 2000mm |
| Diameter | 40mm/53mm |
| Sheath material, threaded heads | carbon steel |
| Threaded connection | G1 1⁄2” (SW65), G2” (SW70) |
| Connection protection | angled metal cover |
| Protection rating | IP65 |
| Cold Zone | min. 50mm |
| Operating conditions | Horizontal |
| Applications |
|---|
| – Heating of hydraulic oil |
| – Heating of thermal oil |
| – Heating of lubricating oil and similar fluids |

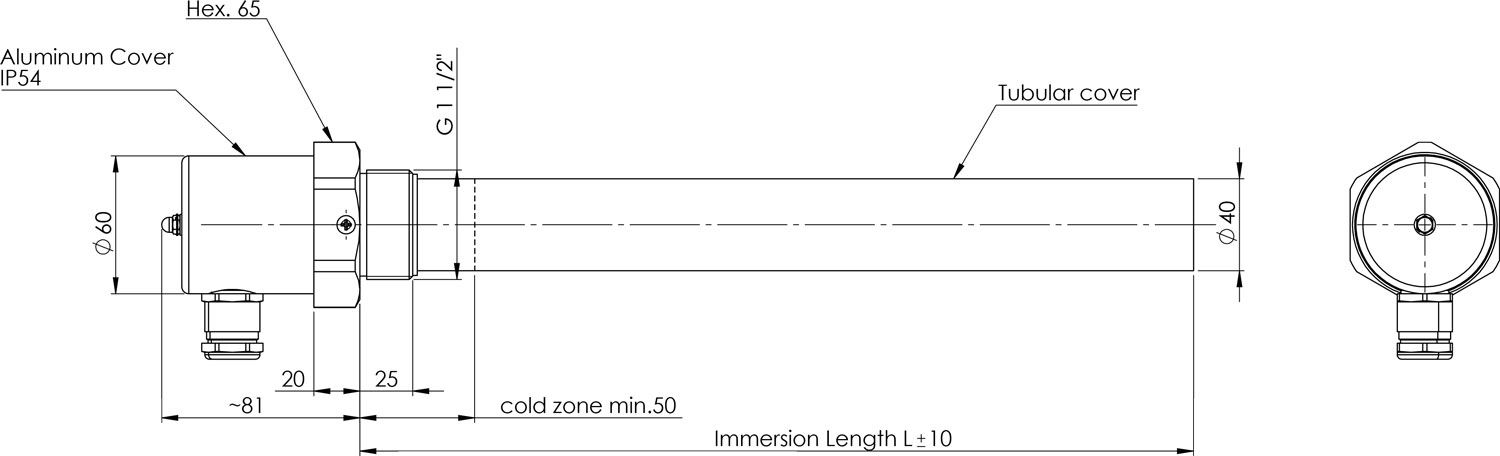

Threaded connection G1 1⁄2”

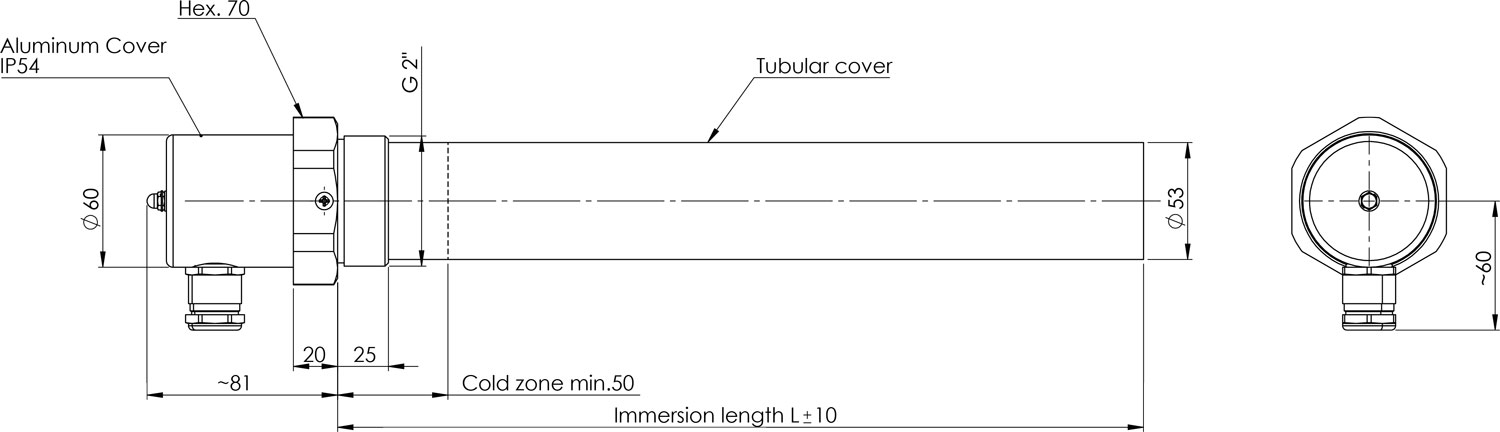

Threaded connection G2”
How to order?
When placing an order, please specify:
