Heating Band nh. 19
Material:Acid-resistant steel
Surface load capacity:max. 6,5W/cm2
Operating temperature:max. 350°C
Inner diameter:min. 30mm, max. 110mm
Width:min. 25mm, max. 200mm
Voltage:230V, 400V, others on request
Lead wires:standard lead: Ax45°
cable – 1000mm
other leads:
*axial (Ax) 0°/5°, 30°/45°
*tangential (Tn) 0°/5°, 30°/45°
*radial (Rd)
Thermocouple:type “J” / “K” (on request)

The NH.19 model is a stainless steel heating band with an additional metal cover. This allows for practically achieving high surface load capacity at band heights above 60mm. NH.19 bands are resistant to corrosive plastics and tightly sealed against their leakage. The electrical connection is protected by a specially profiled stainless steel tube resistant to mechanical stress.

Files to download

Download the PDF product sheet and learn more

Lead wires

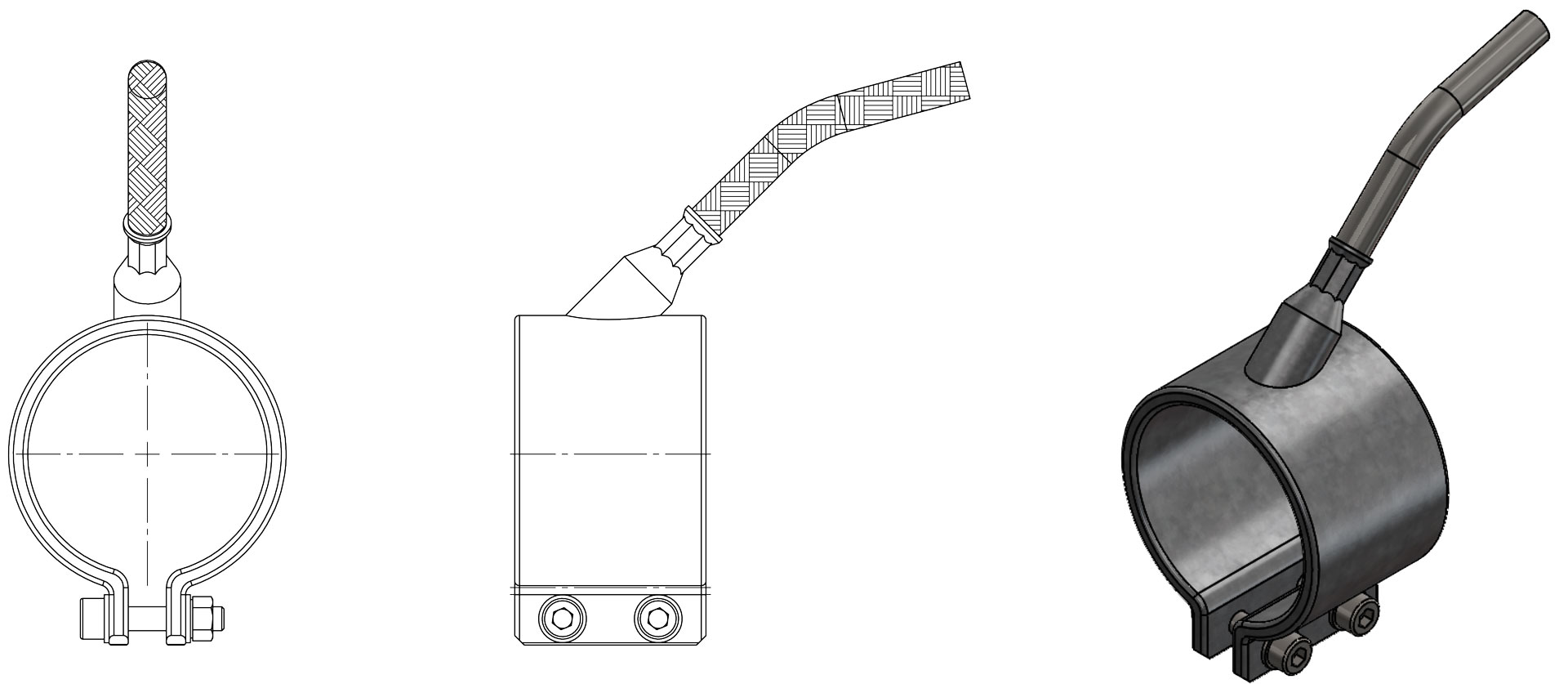

standard lead Ax45°

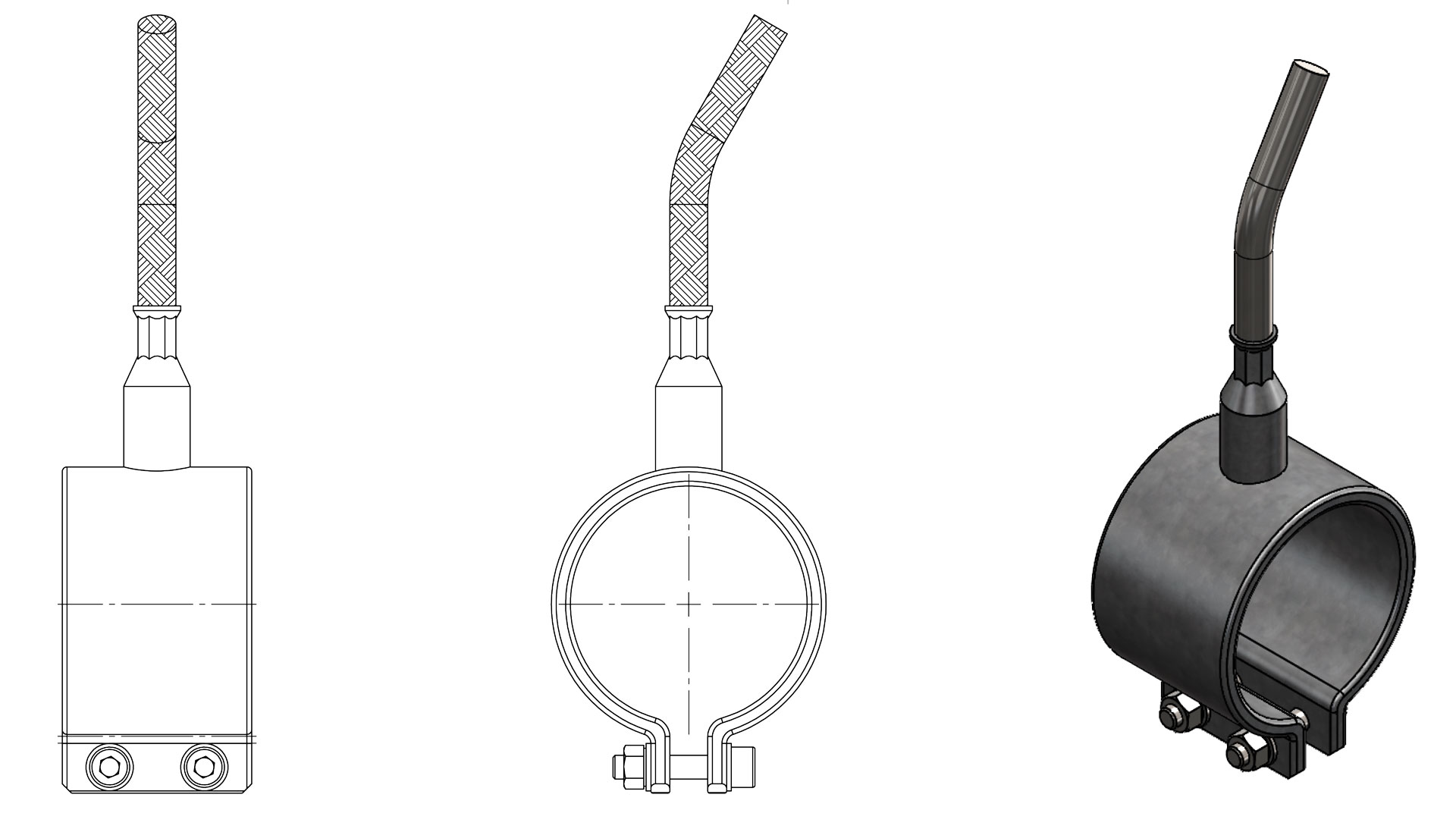

Radial

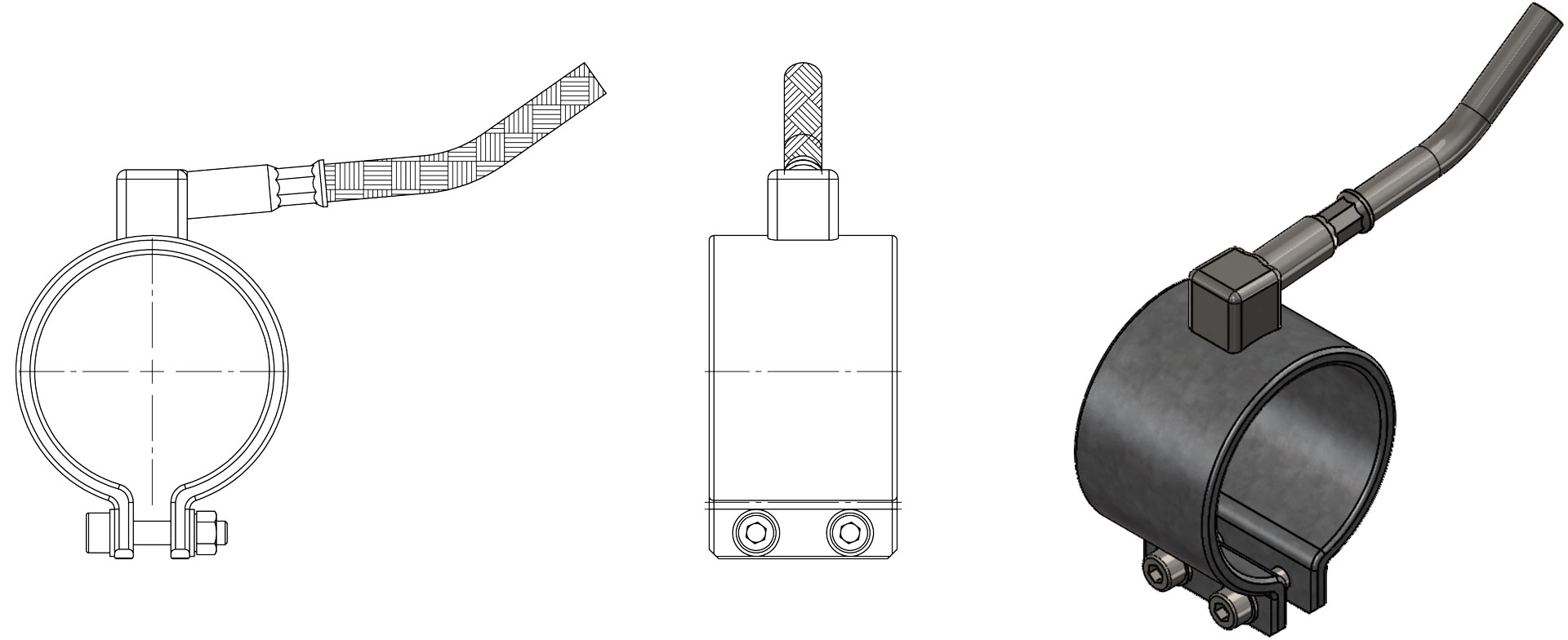

tangential 5°/15°

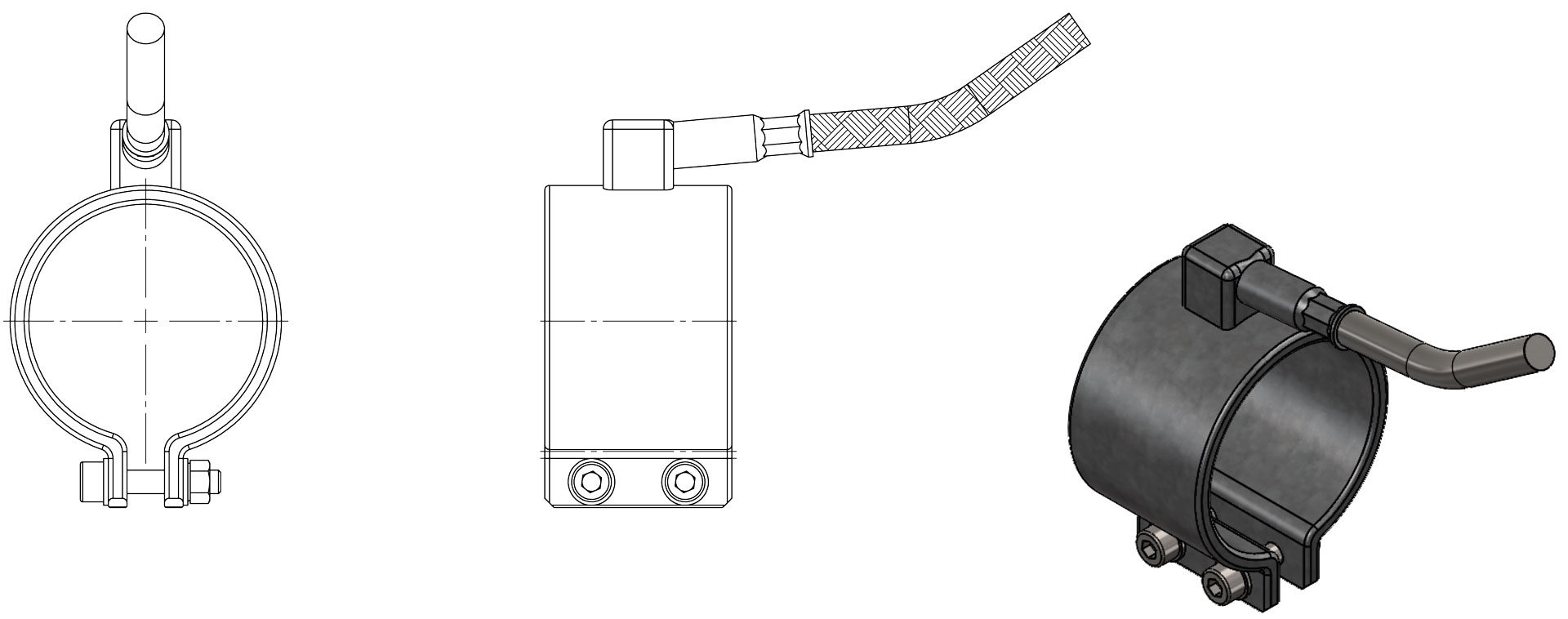

axial 5°

Available bands

Diameter (mm)

from 30 to 110

Width (mm)

from 25 to 200

When ordering, please specify:

  • diameter (mm)
  • width [mm]
  • power [W]
  • voltage [V]
  • power lead type (Ax, Tn, Rd)
  • position of power leads in degrees (Ax0, Ax5, Ax45)
  • cable length [mm]
