| Features |
|---|
| – Heater mounted on screws to the flange |
| – Replaceable heating element without the need to drain fluid from the tank |
| – Modular housing |
| – Durable construction |
| – Easy installation |
| – Surface load capacity of 1.5W/cm² for oil |
| – Surface load capacity of 3.0W/cm² for water and similar fluids |
| Technical Specifications | |
|---|---|
| Power | from 1000W to 8100W |
| Voltage | 230V, 400V, 3x400V |
| Length | from 500mm to 2000mm |
| Pipe diameter | 51mm |
| Sheath material, heads with thread | stainless steel |
| Flange diameter | DN 40/50/80 PN16 |
| Threaded connection | M5 |
| Connection protection | plastic (axial/angle) or metal cover |
| Protection degree | IP54 |
| Dead zone | min. 50mm |
| Operating conditions | horizontal placement |
* Other parameters available on request
| Applications |
|---|
| – Water heating |
| – Oil heating |
| – Heating of technological baths |

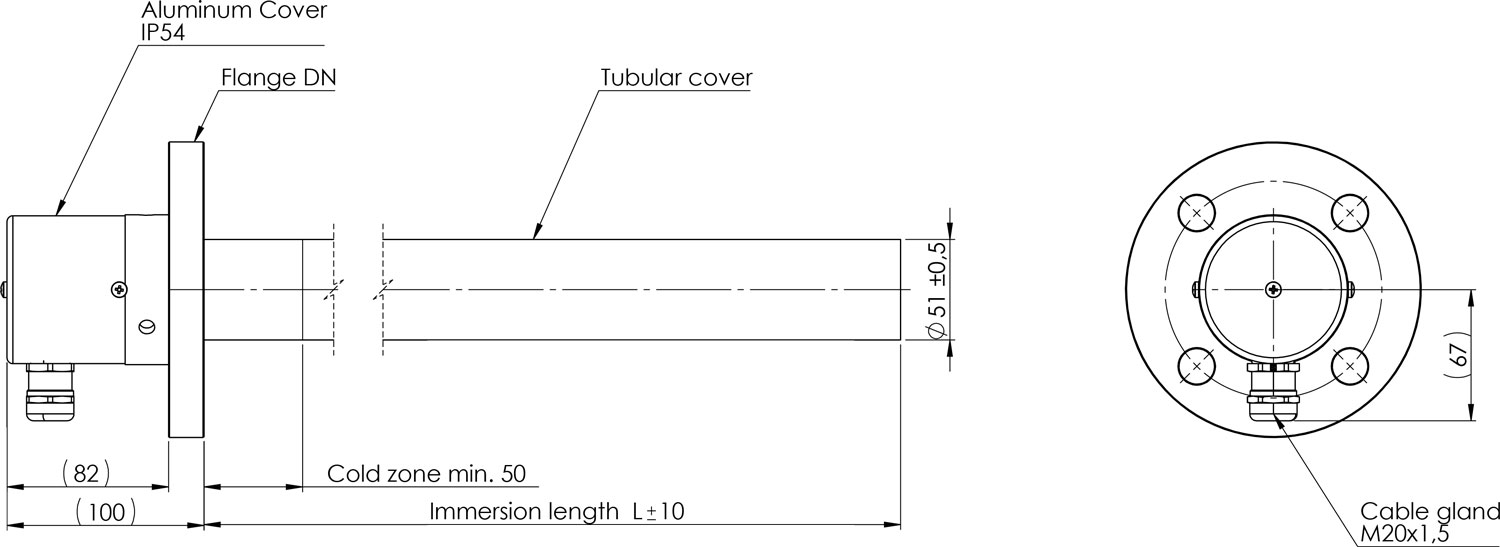

ETG-F with metal cover

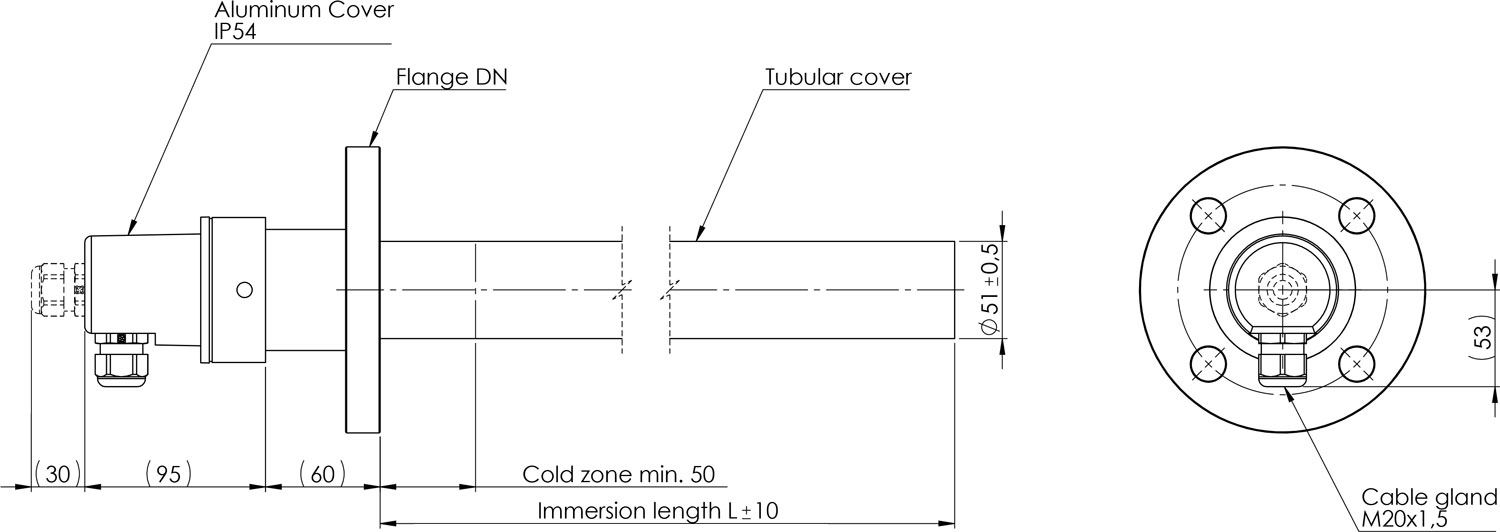

ETG-F with plastic cover

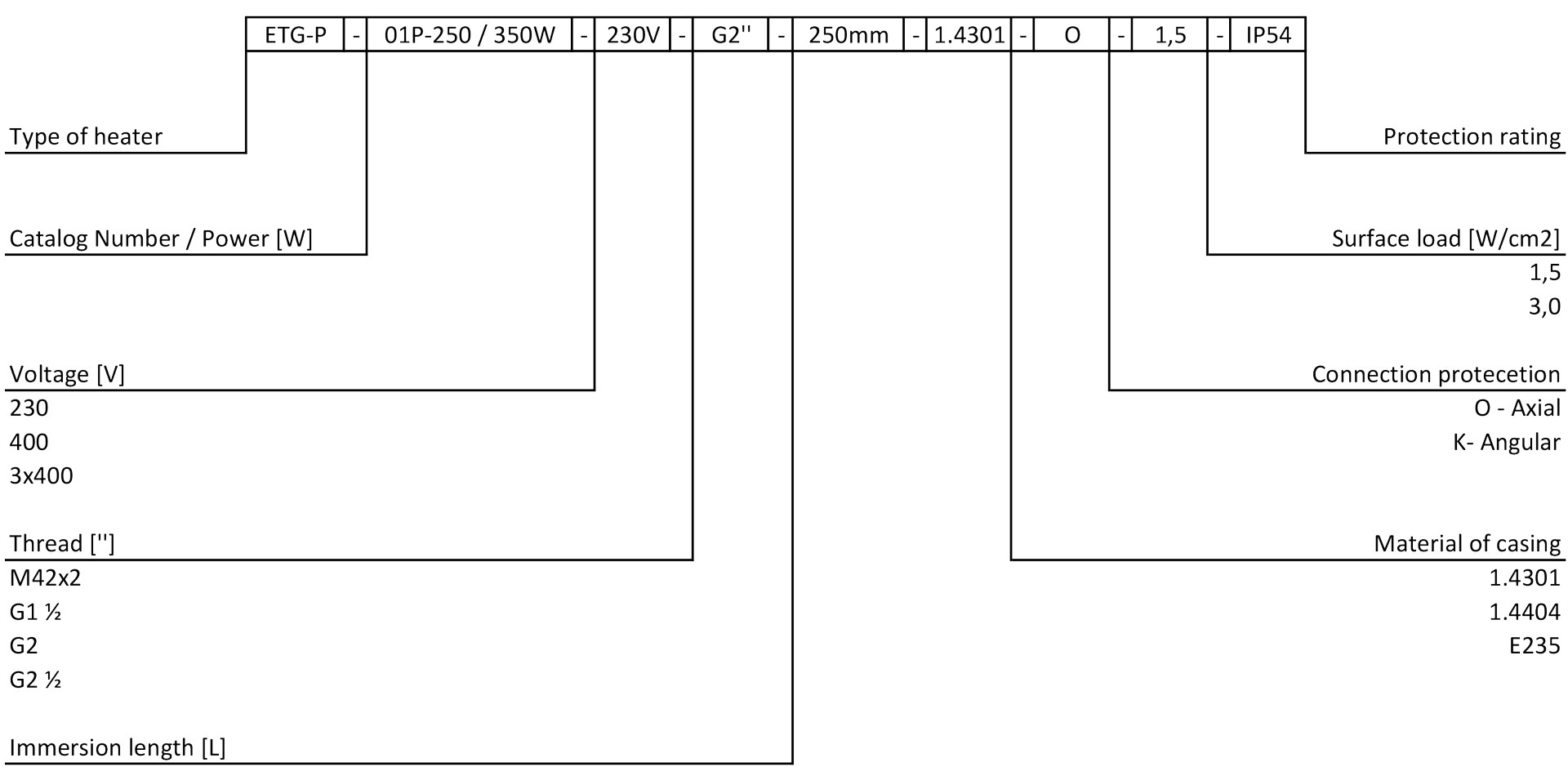

How to Order?
When placing an order, please specify:
