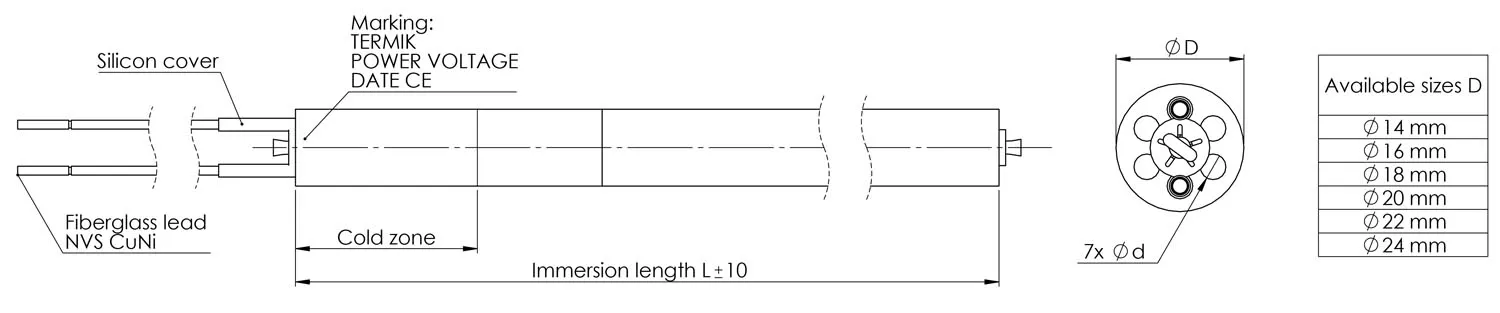

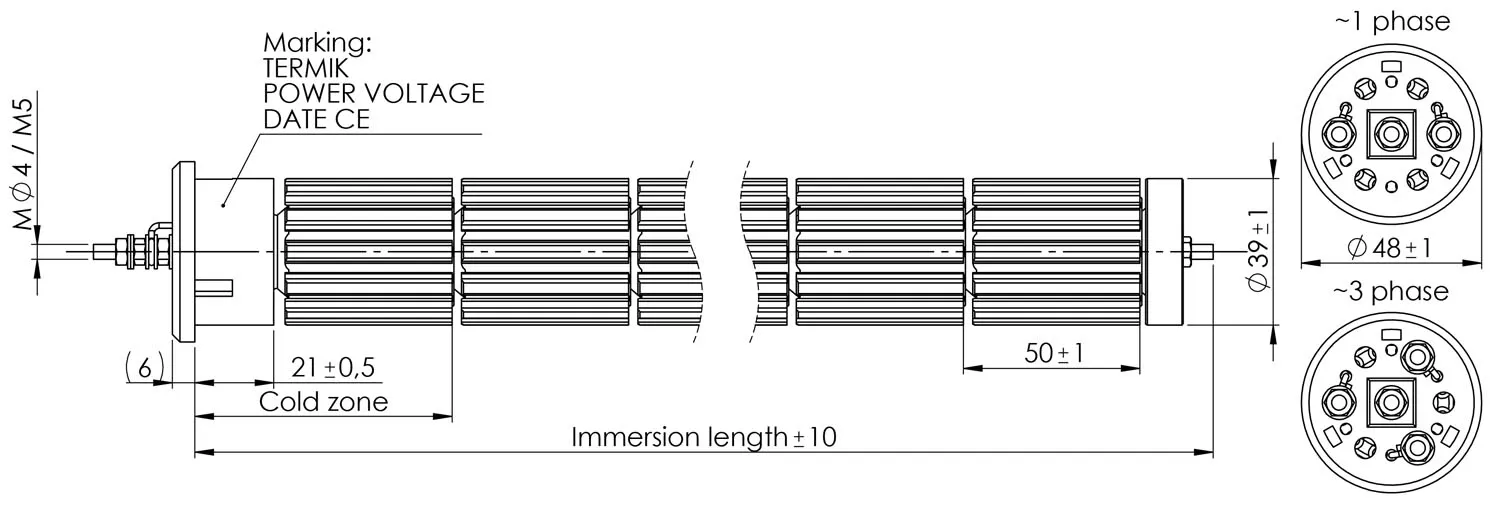

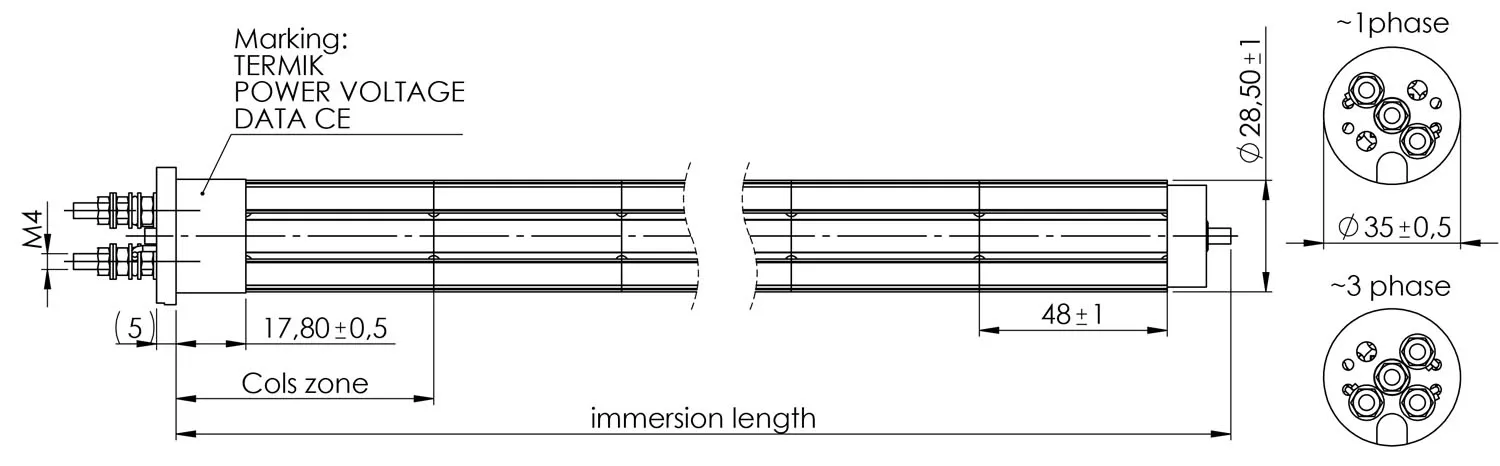

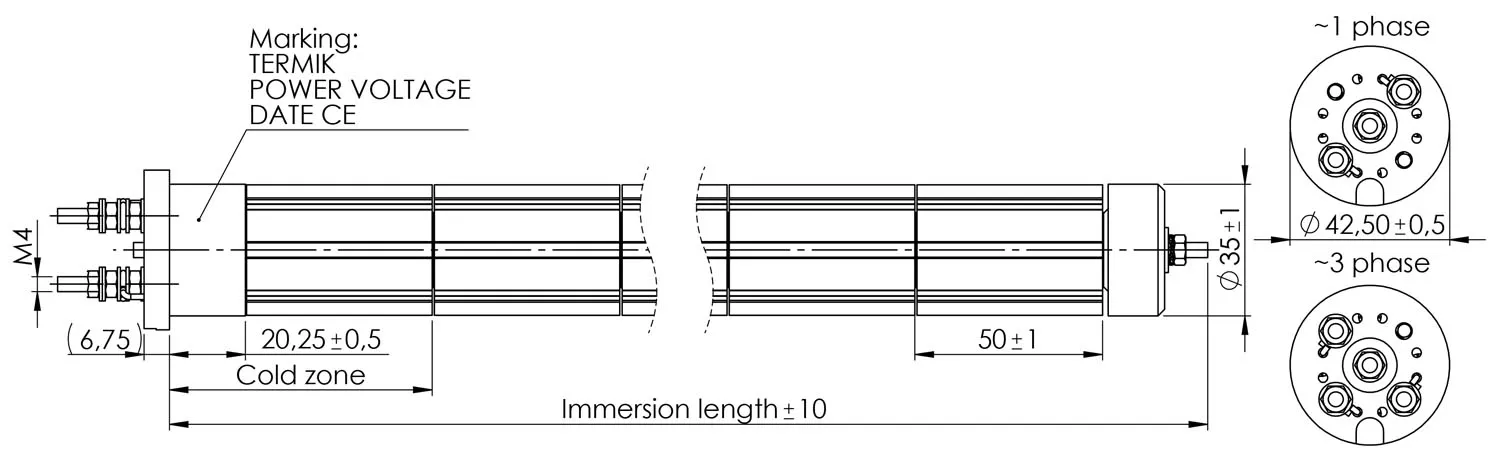

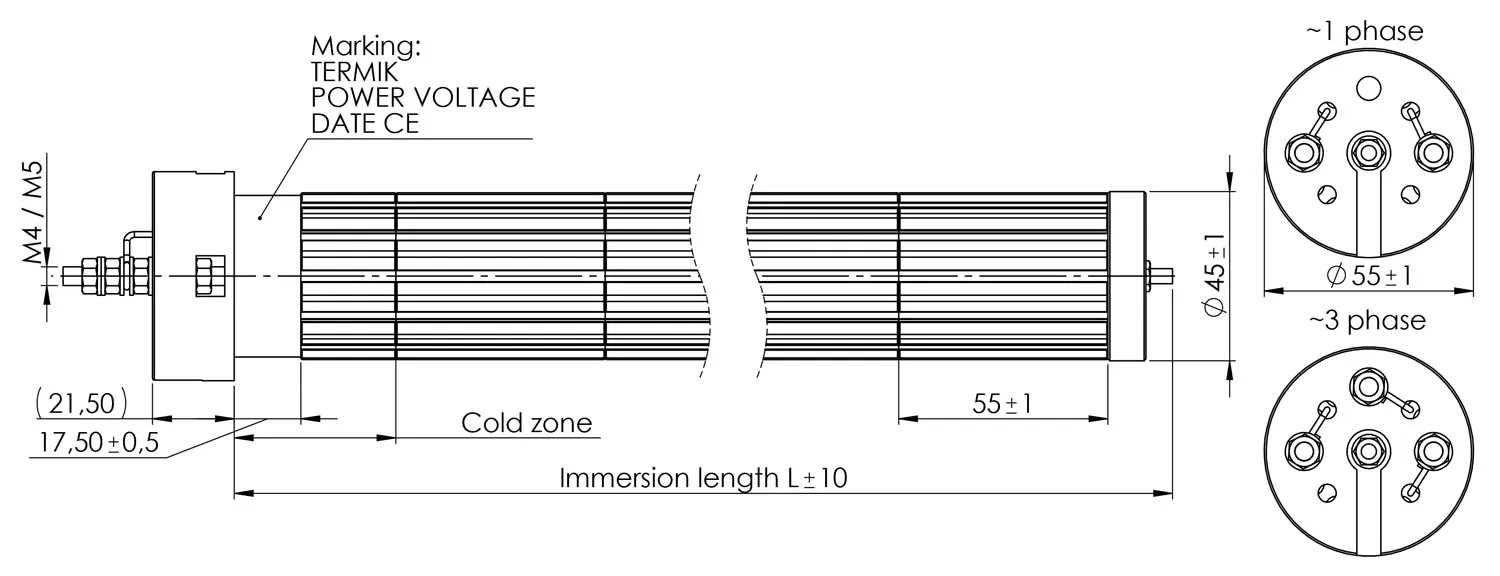

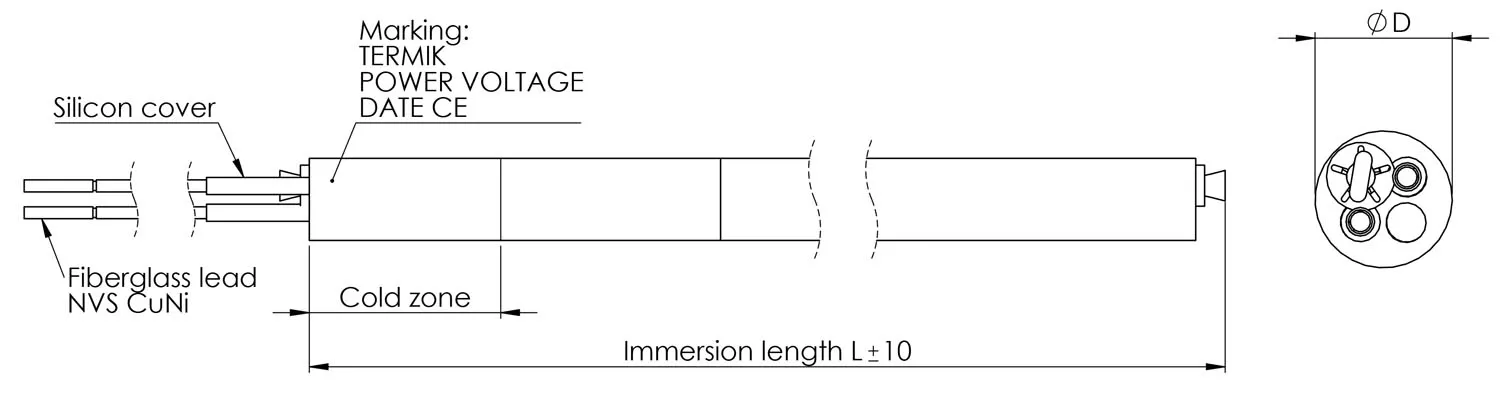

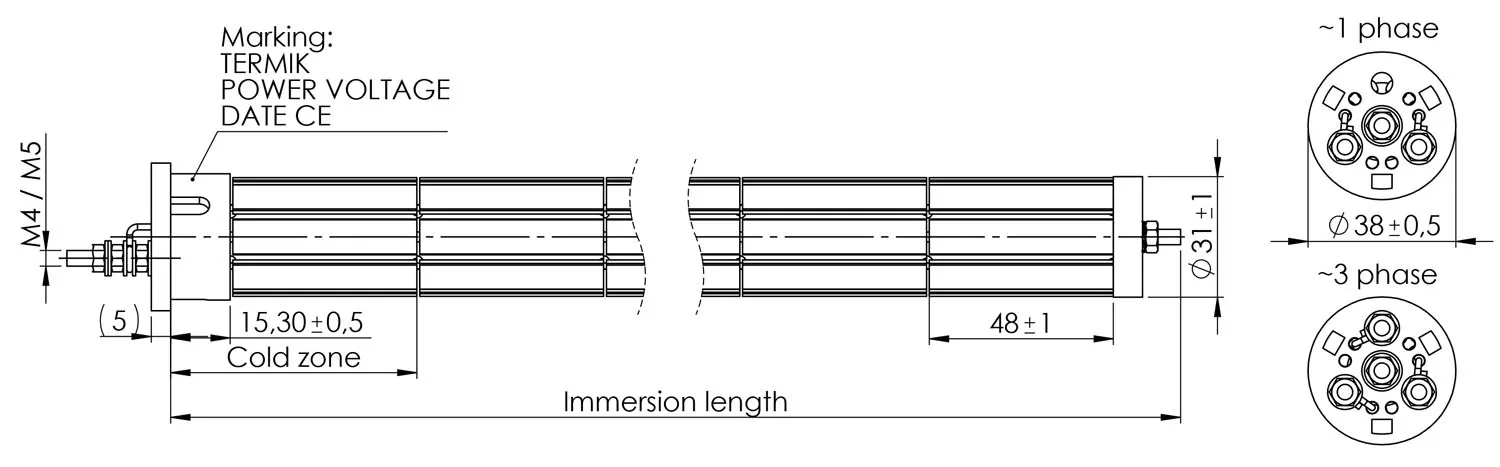

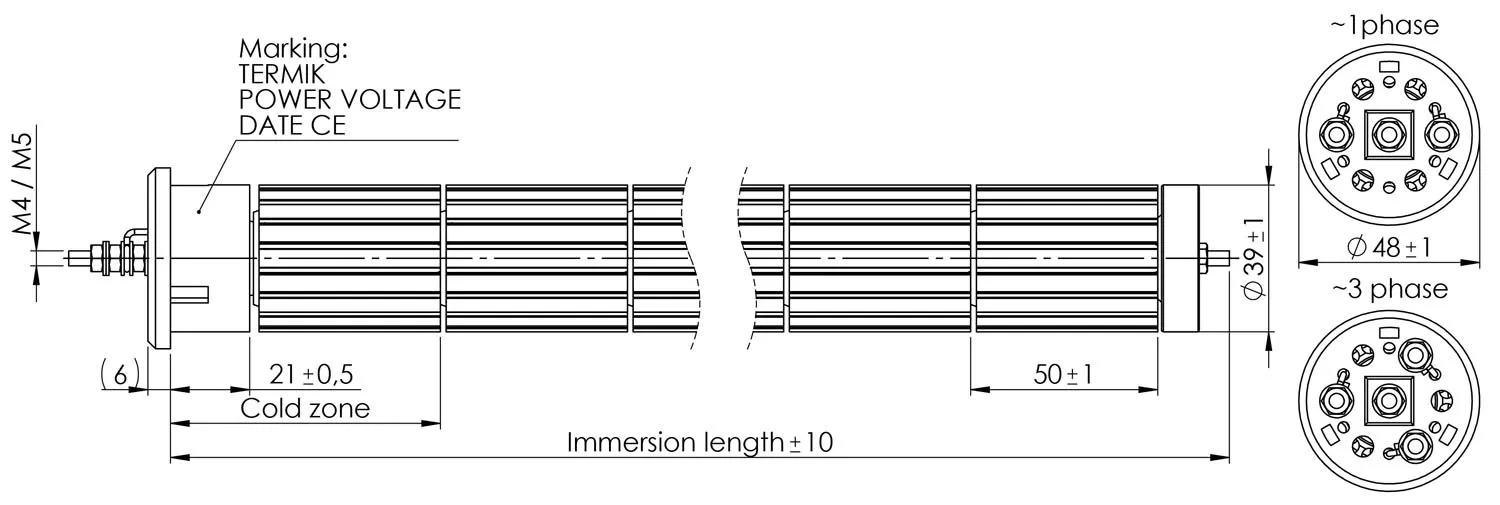

The ceramic heating element, due to its construction, is suitable for heating air and (indirectly) liquids. In its standard version, the heater consists of ceramic segments through which a heating coil is threaded. The power connection is made via a terminal head to which supply wires are attached. The entire structure is reinforced with a rod running along the axis of the heater. The ceramics and resistance wires used offer excellent electrical and mechanical properties, ensuring a long service life.

Applications:

  • ultrasonic and industrial washers
  • immersion tanks
  • water heaters
  • bakery and confectionery equipment
  • bitumen and asphalt heating
Technical data
Powerfrom 80W to 15000W
Voltage230V, 400V, 3x400V, others
Lengthfrom 100mm to 7000mm
Diameter [mm]10; 12; 16; 18; 20; 22; 26; 28,5; 32; 36; 39; 45; 48; 52; 57
Surface loadmax. 6W/cm2
Maximum operating temperature600°C
Connection typeWires in fiberglass insulation, silicone insulation, ceramic blocks, threaded connections M4 / M5 / M6, others

When placing an order, please specify:

  • Power [W]
  • Voltage [V]
  • diameter [mm]
  • Length [mm]
  • length of the cold zone [mm]
  • Quantity [pcs]
