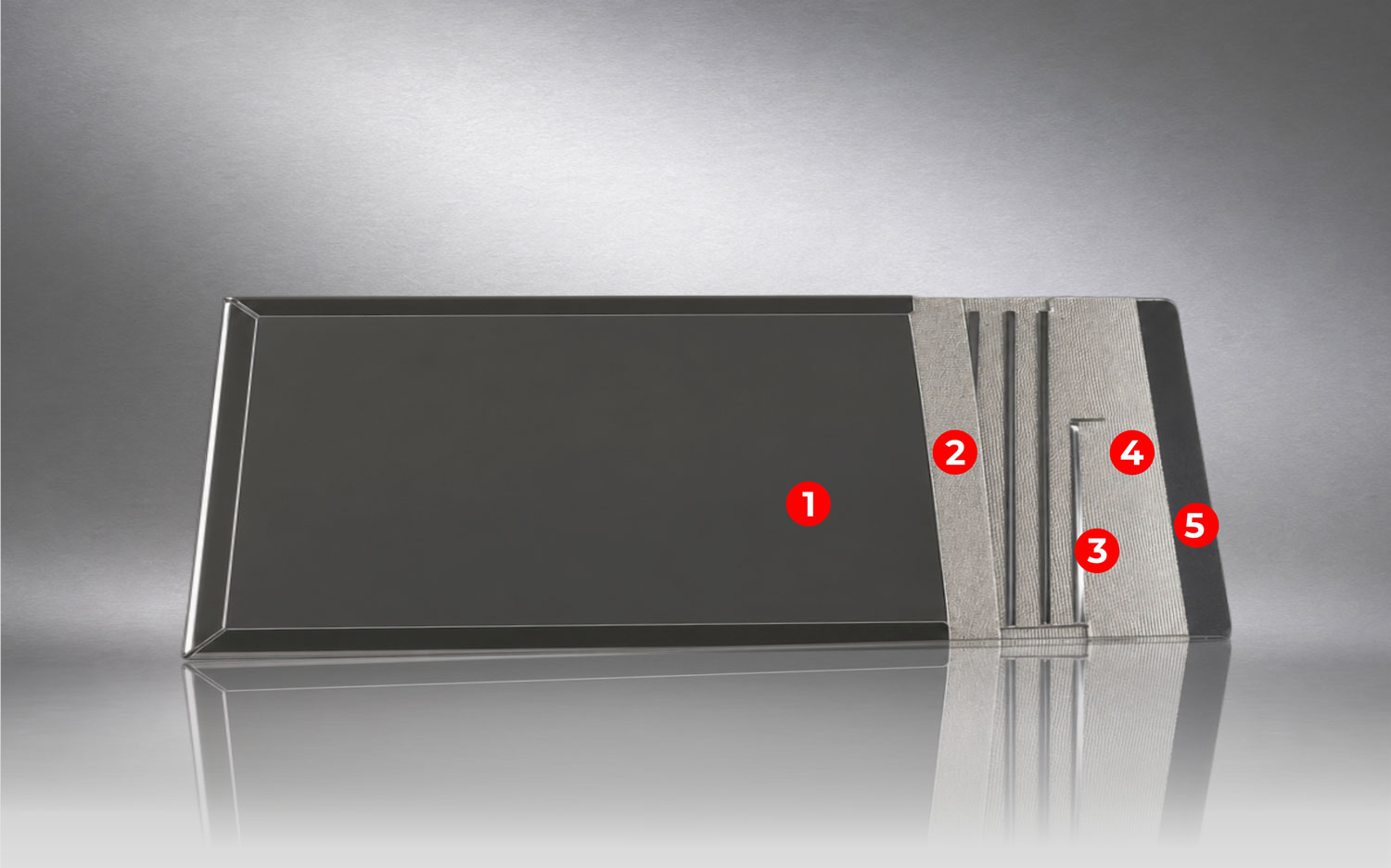

Mica band heaters
Internal diameter:From 60 to 700 mm
Width:From 20 to 700 mm
Surface load:max. 4W/cm2
Power supply voltage:230V, 400V, others upon request
Operating temperature:320 °C
Resistive tape:NiCr 80/20
Wall thickness of the heating band:4,0 mm +/- 0,5 mm
Enclosure material:Stainless steel AISI 430
Thermocouple:Type “J”/”K” upon request
Power supply connection:Ceramic terminal blocks, plug sockets, high-temperature wires, others
Features
– Excellent heat transfer on the cylinder
– Long lifespan with proper usage
– Easy installation
– Even heat distribution
– High mechanical resistance
– Stable operation
Applications
– Injection molding machines, extruders, and extrusion machines
– Blow molding machines
– Packaging machines and equipment
– Machines for rubber product manufacturing
– Pipe and industrial channel heaters
– Other thermoforming equipment
– Other applications for heating cylindrical shapes

Connection Layout, Hole Distribution in Degrees:

Files for download

Download the product datasheet PDF to learn more

Types of Electrical Connections
Rodzaje podłączeń elektrycznych
Types of Mountings
Rodzaje mocowań

When ordering, you need to specify:

  • diameter [mm]
  • width [mm]
  • power [W]
  • supply voltage [V]
  • type of current lead (MB, terminal block, other)
  • position of current leads in degrees
  • cable exit direction: axial/radial
  • cable length [mm]
  • mounting (0°)
  • hole or cut-out (if applicable)
  • position of hole in degrees
  • position of the hole center in mm
  • hole diameter in mm

It is also possible to manufacture heaters according to drawings or samples provided by the client.

Order Example:

Mica Heating Band 1500W 400V Ø120x200mm MB.04/180°
Quantity: 5 pcs
