Galvanic heaters
GW heating is a family of heating elements used for heating various types of baths in bathtubs, tanks, adapted to work vertically. The heater has a modular construction, it consists of a cover made of the right type of material (see table below), a ceramic heating element and a head made of polypropylene, resistant to the effects of chemical compounds, constituting airtight cover of current connections. Choosing the right cover for the heater ensures the required resistance to chemicals contained in the bath and reduces operating costs.
Technical data
| Power | from 500W to 6000W |
| Voltage | 230V, 3x400V |
| Immersion level Lh | from 350mm to 2500mm |
| Working temperature | to 140°C |
| Power cable | available as an option |
| Cover for current connections | IP65 protection |
types of heaters
| heater type | Cover material | diameter [mm] | Length of the heater [mm] | Application |
|---|---|---|---|---|
| GW-1 | quartz glass | 54 / 60 | 350 - 1480 | all baths except hydrofluoric and fluoride |
| GW-2 | hardened porcelain, glazed | 63 | 580 / 780 / 980 | all baths except hydrofluoric and fluoride |
| GW-3 | steel ST-34-2 | 50 / 53 | 350 - 2500 | alkaline baths |
| GW-4 | Stainless steel 1.4301, 1.4404, 1.4571 | 51 | 350 - 2500 | alkaline baths |
| GW-5 | Teflon PTFE | 51 | 350 - 2500 | all types of bath |
TECHNICAL DRAWINGS

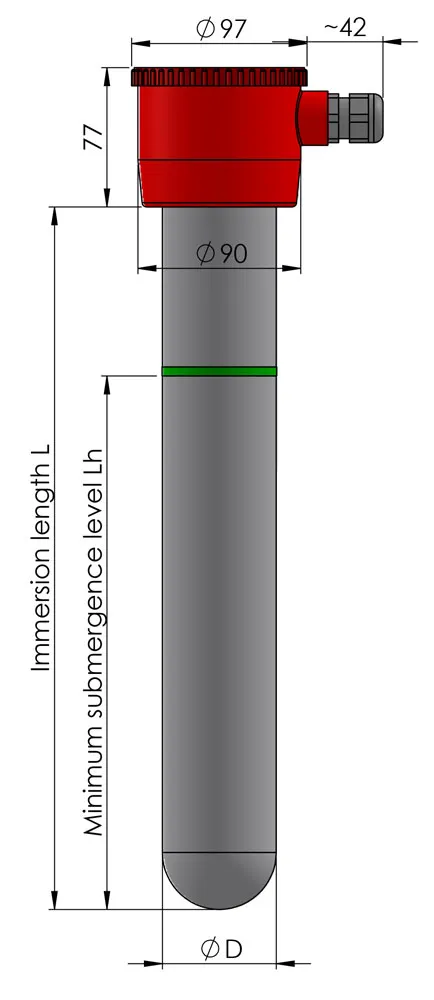

Heater construction

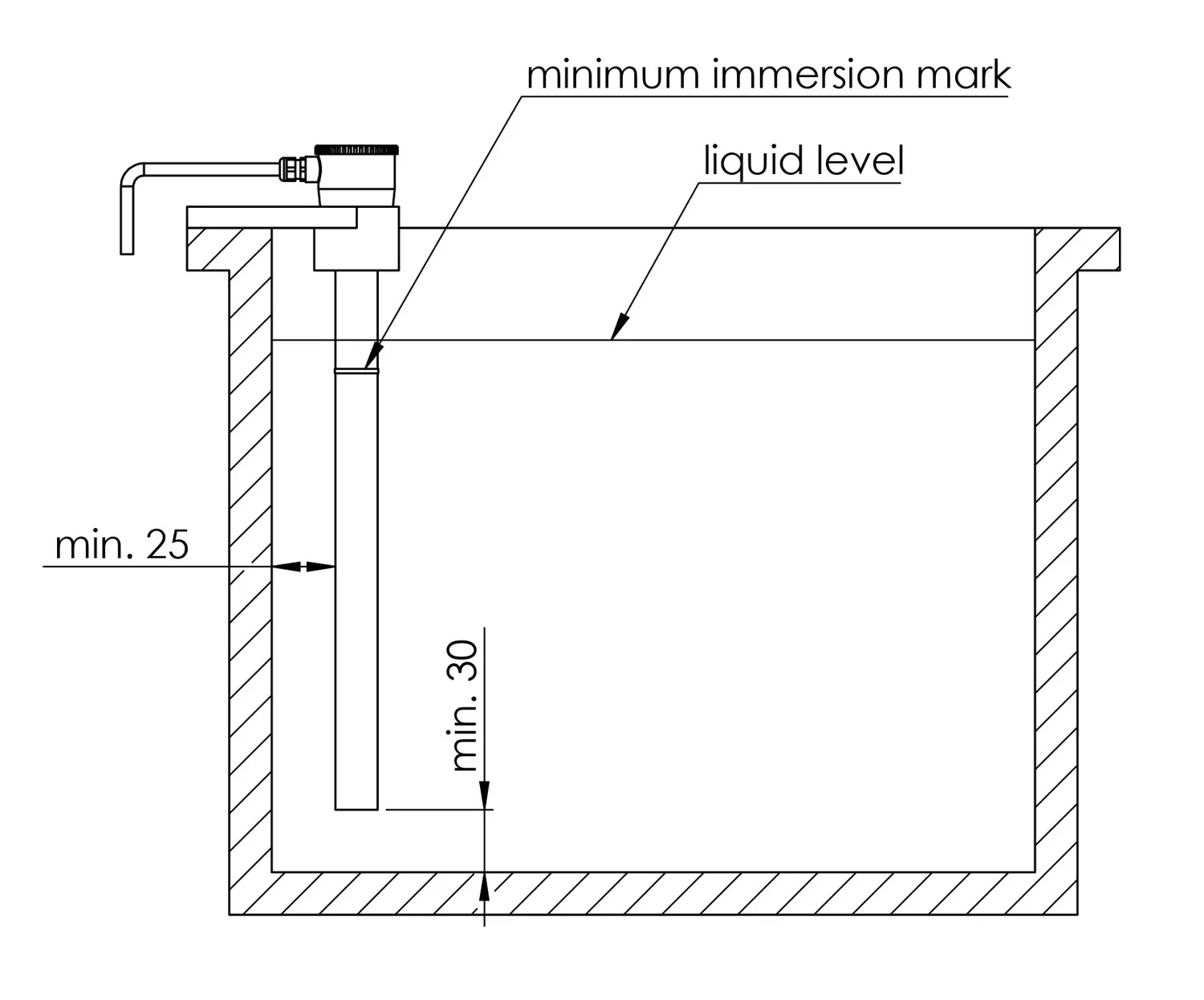

Montage
When ordering, please specify:
- Heater type (np.: GW-1, GW-2, inne)
- power [W]
- voltage [V]
- diameter [mm]
- length [mm]
- cold zone [mm]
- work medium
Order example:
Heating element GW-1 1650W 230V L/Lh-800/600
Diameter: 60mm, Cold zone: 50mm
Water
Quantity: 8pcs
STANDARD HEATER PARAMETERS
 |
 |
 |
 |
 |
|---|---|---|---|---|
| GW-1 | GW-2 | GW-3 | GW-4 | GW-5 |
| 500W 230V L/Lh-350/250mm | 1000W 230V L/Lh-580/380mm | 500W 230V L/Lh-350/250mm | 500W 230V L/Lh-350/250mm | 500W 230V L/Lh-350/250mm |
| 1000W 230V L/Lh-480/280mm | 1250W 230V L/Lh-580/430mm | 1250W 230V L/Lh-500/350mm | 1250W 230V L/Lh-500/350mm | 1000W 230V L/Lh-500/350mm |
| 2000W 230V L/Lh-580/380mm | 1500W 230V L/Lh-580/430mm | 2000W 230V L/Lh-600/450mm | 2000W 230V L/Lh-600/450mm | 1250W 230V L/Lh-600/450mm |
| 2000W 230V L/Lh-780/580mm | 2000W 230V L/Lh-580/430mm | 2000W 230V L/Lh-800/600mm | 2000W 230V L/Lh-800/600mm | 1750W 230V L/Lh-800/600mm |
| 2500W 3x400V L/Lh-780/580mm | 1500W 230V L/Lh-780/580mm | 2500W 3x400V L/Lh-800/600mm | 2500W 3x400V L/Lh-800/600mm | 2000W 230V L/Lh-800/600mm |
| 3000W 3x400V L/Lh-880/680mm | 2000W 230V L/Lh-780/580mm | 3000W 3x400V L/Lh-1000/800mm | 3000W 3x400V L/Lh-1000/800mm | 2500W 3x400V L/Lh-1000/700mm |
| 3500W 3x400V L/Lh-980/680mm | 2500W 3x400V L/Lh-780/580mm | 3500W 3x400V L/Lh-1200/900mm | 3500W 3x400V L/Lh-1200/900mm | 3000W 3x400V L/Lh-1200/900mm |
| 3500W 3x400V L/Lh-1180/880mm | 2500W 3x400V L/Lh-980/780mm | 4500W 3x400V L/Lh-1600/1250mm | 4500W 3x400V L/Lh-1600/1250mm | 3000W 3x400V L/Lh-1600/1150mm |
| 3500W 3x400V L/Lh-1380/1080mm | 3000W 3x400V L/Lh-980/680mm | 5000W 3x400V L/Lh-2000/1400mm | 5000W 3x400V L/Lh-2000/1400mm | 4000W 3x400V L/Lh-2000/1400mm |
| 4500W 3x400V L/Lh-1480/1130mm | 3500W 3x400V L/Lh-980/680mm | 6000W 3x400V L/Lh-2500/1800mm | 6000W 3x400V L/Lh-2500/1800mm | 5000W 3x400V L/Lh-2500/1800mm |
